Ningbo Danko Vacuum Technology Co., Ltd. builds PVD and vacuum coating systems and supplies the consumables that keep them running. Our Consumption materials & targets range covers evaporation wires and sputtering targets in the shapes and purities our coating chambers use, so a single supplier can support both the machine and its working materials.

This matters most where target geometry, wire diameter and material grade directly affect deposition rate, film uniformity and target life. We match these consumables to the process route — thermal evaporation, multi-arc ion plating or magnetron sputtering — and to the chamber fixture the customer already operates.

Our Position in PVD Consumption Materials

Danko has manufactured vacuum coating equipment since 2007, originally as Huahong Vacuum Technology, and today operates with about 90 engineers and technicians across coating development, system manufacturing and after-sales service. That equipment background shapes how we supply consumables: we understand the cathode, the evaporation boat, the arc source and the vacuum level the material will see.

Our consumables are supplied as part of the wider Vacuum accessories group, alongside power supplies, vacuum pumps and pump oil. For a plant engineer this means the wear parts, the working materials and the machine itself can be specified together rather than sourced from unrelated channels.

The Range We Supply

The range is organised by form factor, because the shape of the material determines which deposition method and which fixture it suits. Each item below is a stocked or made-to-order product line.

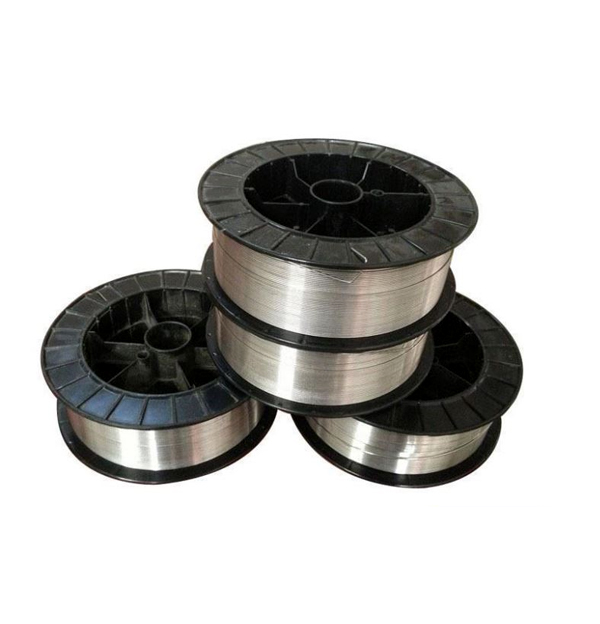

Aluminum wires

99.99% aluminum evaporation wire in gauges from 0.5 mm to 2.0 mm, used as the evaporation source in vacuum metallizing. Typical applications include automotive headlight reflectors, mirror coatings, small appliances, watch and clock parts, toy metallization and cosmetic caps.

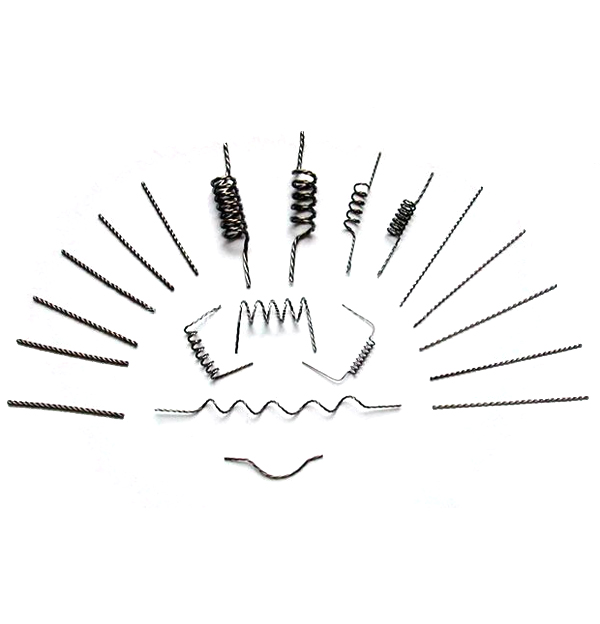

Tungsten wires

High-melting-point tungsten wire for evaporation sources where aluminum would not survive the thermal load. Supplied for resistance-heated evaporation in decorative and functional metallizing.

Circular targets

Disc-format sputtering targets in titanium, zirconium, chromium and alloy grades. Standard diameters run from 60 mm to 100 mm with thicknesses from 20 mm to 50 mm, and custom sizes are available.

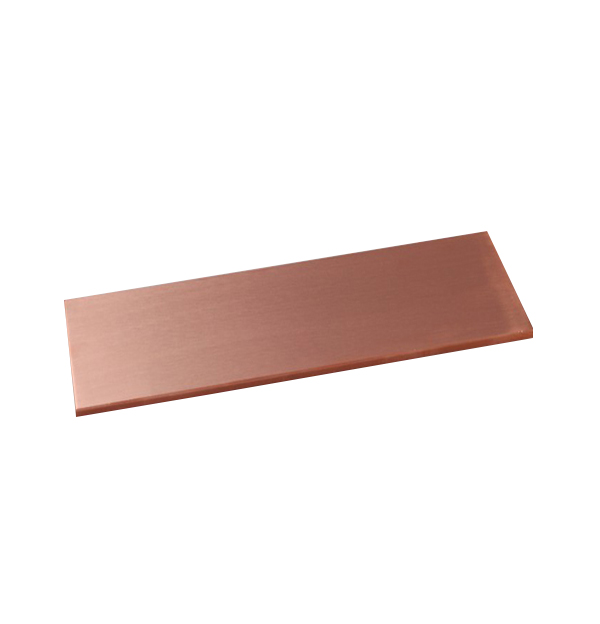

Rectangular targets

Planar targets for rectangular magnetron cathodes, used where line coverage or large-area uniformity matters more than a round footprint. Dimensions are made to the cathode drawing.

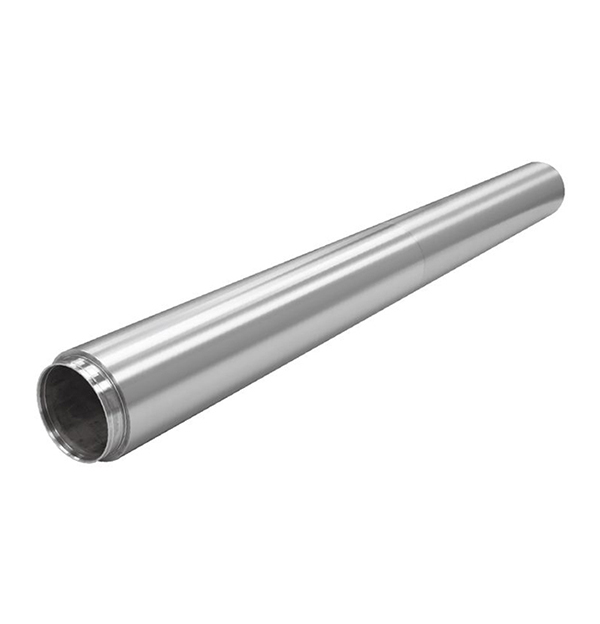

Columnar targets

Cylindrical targets for rotating or column-format cathodes, supplied to custom dimensions. The cylindrical form supports higher target utilisation in continuous sputtering.

Matching Material to Deposition Method

Consumable selection follows the coating route, not the other way round. The table below shows how our product forms map onto the processes our coating systems use.

Product form Deposition method Typical coating application Key specification
Aluminum wire Thermal evaporation Reflectors, decorative metallizing, packaging film Purity ≥99.99%; gauge 0.5–2.0 mm
Tungsten wire Thermal evaporation High-temperature evaporation sources Melting point and wire diameter
Circular target Magnetron sputtering Hard films, decorative coatings, tool coatings Diameter 60–100 mm; thickness 20–50 mm
Rectangular target Planar magnetron sputtering Large-area and architectural coatings Length, width and thickness to cathode
Columnar target Rotating cylindrical sputtering Continuous and high-utilisation sputtering Custom diameter and length

Materials and Metallurgy

Our targets are produced in titanium, zirconium, chromium and alloy grades, with circular and columnar formats referencing ASTM B 381, GB/T 3620.1, GB/T 3620.2 and GB/T 15073. Surfaces are supplied bright. These are the grades that pair with the hard, tribological and decorative films our coating machines deposit.

  • Titanium targets — nitride and oxide films for wear resistance and decorative colour.
  • Chromium targets — hard chromium-based layers and adhesion-promoting interlayers.
  • Zirconium targets — corrosion-resistant and decorative film systems.
  • Alloy targets — multi-element films where a single-metal target cannot deliver the required composition.

Where These Consumables Fit in Our Coating Systems

Consumables are specified against the machine. For Hard/tribological coating machine installations, circular and rectangular targets feed the sputtering cathodes that deposit wear-resistant layers on tools, moulds and transmission parts. For Decorative vacuum coating machines, aluminum and tungsten wires serve the evaporation sources behind metallized finishes on plastics, glass and hardware.

Automotive programs draw on both routes: Automotive lights metallization coating machine lines rely on high-purity aluminum wire for reflector brightness, while exterior trim and functional parts use sputtered targets for durable colour and corrosion resistance.

Specification and Ordering Details

Wire and target orders are quoted against the dimensions and grade the process requires. The following points define a complete consumable specification.

  • Wire gauge: aluminum wire is available in Φ0.5, 0.6, 0.8, 1.0, 1.2, 1.5 and 2.0 mm; other diameters on request.
  • Target dimensions: circular targets from 60 mm to 100 mm diameter and 20 mm to 50 mm thickness; rectangular and columnar targets to drawing.
  • Purity: aluminum wire at ≥99.99%; target grades quoted to the specified standard.
  • Packing: carton box as standard, with custom packing available.
  • Minimum order: from 1 kg for wire; target quantities quoted per item.
  • Delivery: wire dispatched within 15 days of payment receipt; target lead times confirmed at quotation.
  • Shipping: air, sea or express, coordinated from Ningbo.

Quality Control and Acceptance

Consumables are inspected before shipment, in line with the same pre-delivery debugging and inspection routine we apply to our coating systems. For targets, that means checking dimensions, surface condition and grade against the order; for wire, gauge and purity. Where a customer requires third-party verification, the inspection route is agreed at order stage.

Because we also build the machines, consumable performance is judged in process terms — deposition rate, film appearance and target life — rather than as an isolated material specification.

Information We Use to Configure Your Solution

A consumable quotation is only as good as the process data behind it. We prepare proposals from the following inputs.

Input Why we need it
Coating machine model and deposition method Determines whether wire or target is appropriate and which cathode or source it fits.
Cathode or evaporation source drawing Fixes target diameter, thickness, length and mounting detail.
Film material and required composition Selects titanium, chromium, zirconium or alloy grade.
Substrate material and part geometry Confirms process compatibility and expected consumption rate.
Monthly consumption and reorder pattern Sets order quantity, packing and delivery scheduling.
Purity or standard requirement Matches grade to the referenced standard and inspection plan.

Frequently Asked Questions

Which aluminum wire gauges do you supply, and what purity?

We supply 99.99% aluminum evaporation wire in diameters of 0.5, 0.6, 0.8, 1.0, 1.2, 1.5 and 2.0 mm, with other gauges available on request. It is packed in cartons, and custom packing can be arranged. Minimum order is 1 kg, with delivery within 15 days of payment receipt.

Can you make targets to our cathode dimensions?

Yes. Circular targets have standard diameters from 60 mm to 100 mm and thicknesses from 20 mm to 50 mm, but we also produce to customer drawings. Rectangular and columnar targets are made to the dimensions of the cathode or fixture supplied with the enquiry.

Which target materials are available?

Titanium, zirconium, chromium and alloy targets are the standard grades, referenced to ASTM B 381, GB/T 3620.1, GB/T 3620.2 and GB/T 15073. Surfaces are supplied bright. The grade is selected against the film composition and the deposition method used on the machine.

How do I know which consumable suits my coating machine?

The deposition method decides it. Thermal evaporation machines use aluminum or tungsten wire; magnetron sputtering machines use circular, rectangular or columnar targets. If you tell us the machine model and the film you are depositing, we will confirm the matching consumable and dimensions.

Do you supply consumables for machines you did not manufacture?

We quote against the process and the fixture, not only against our own equipment. Providing the cathode or source drawing, the deposition method and the required film allows us to specify a compatible wire or target for the chamber in use.

What documentation and shipping arrangements come with an order?

Orders are shipped by air, sea or express from Ningbo, about 100 km from Ningbo Port. Consumables are inspected before shipment, and the inspection route for targets can be agreed at order stage where third-party verification is required.
