Continuous Magnetron Sputtering Machine Custom

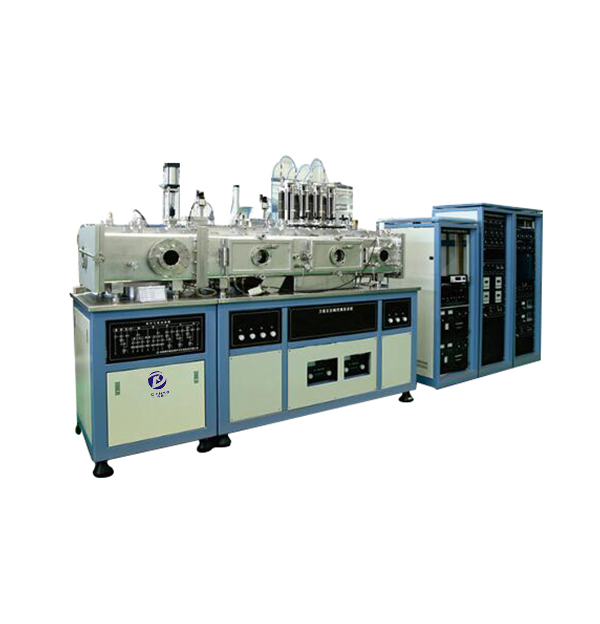

Continuous Magnetron Sputtering Machine

Product Description

System Summary

This series of coating line is mainly used in flat glass, acrylic, PC, PE materials to get a high quality, multi-function metal film, electromagnetic shielding film, reaction film, transparent conductive film, antireflection (AR) & enhanced reflectance film and Low-E single silver, double silver, triple silver, tempered single silver, tempered double silver, all sunlight coating etc.




• This coating line uses vacuum magnetron sputtering technique, twin cathode technique and MF sputtering technique, with advanced control systems.
• The production process is full automatic and continuous, the highest temperature of coated substrates can be up to 350℃, and it’s adjustable according to requirements.
• Chambers are made of SUS304, polished inner wall, painted the outside wall of chambers after polishing.
• Chambers are separated by an independent gate valve, which is designed as slider damper. It can be cut off easily, thus make process stabilize. Convey is driven by magnetron motor, which ensures the stability of convey. The speed of the whole line is controlled by variable frequency adjustable speed motor, and running speed is adjustable.
• Electrical control system: touch screen and PLC automatic control, man-machine dialogue to achieve the data display, operate and control.

Danko Vacuum Technology is professional China Continuous Magnetron Sputtering Machines manufacturers and custom Continuous Magnetron Sputtering Machines company ,including but not limited to Sputtering Systems, Optical Coating Units, Batch Metallizers, Physical Vapor Deposition (PVD) Systems, Hard and Wear Resistant Vacuum Coating Deposition Equipment, Glass, PE, PC Substrate Coaters, Roll-to-Roll Machines for coating flexible substrates. our Continuous Magnetron Sputtering Machine are used for a wide range of applications described below (but not limited to) Automotive, Decorative, Hard coatings, Tool & Metal Cutting coatings, and thin film Coating applications for industrial and Laboratories including Universities.Danko Vacuum Technology Company Ltd is committed to expand our market boundaries by providing high-quality, high-performance Continuous Magnetron Sputtering Machine.
